What Is a Galvanized Chain and Which Size Should You Choose?
Rust quickly weakens ordinary steel chains. Outdoor exposure, seawater, and heavy loads accelerate corrosion and failure. Choosing the wrong chain risks safety and costly downtime. A galvanized chain provides a durable, corrosion-resistant solution for demanding environments.
A galvanized chain is a steel chain coated with a protective zinc layer to prevent rust and corrosion. Available in sizes from 2mm to 18mm, it is widely used in marine, construction, agriculture, mining, and lifting applications. Hot dip galvanized chains offer superior durability for heavy-duty and outdoor environments.
Let’s explore the types, sizes, specifications, and how to select the right galvanized chain.

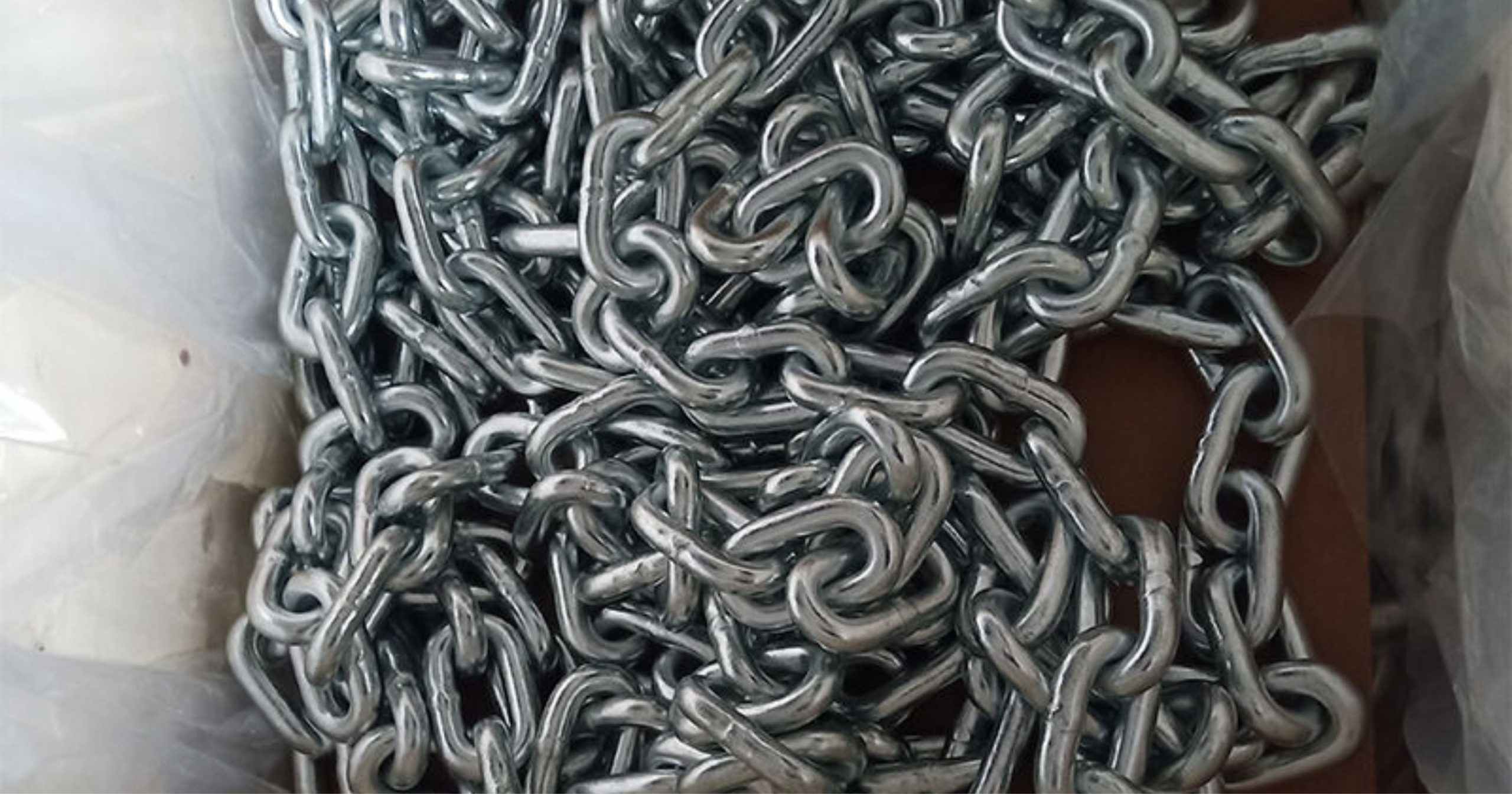

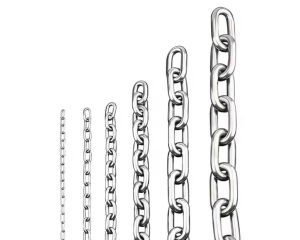

What Is a Galvanized Chain?
Steel chains are strong but vulnerable to rust. Galvanizing significantly extends their service life in moisture-prone environments.
A galvanized chain is a carbon or alloy steel chain coated with zinc through hot-dip galvanizing or electro-galvanizing. The zinc layer forms a barrier that protects the steel from oxidation and corrosion.
Hot dip galvanized chain is immersed in molten zinc, creating a thicker coating with long-term protection. Electro-galvanized chains have a thinner coating and are more suitable for light-duty indoor use. For marine galvanised chain applications, hot dip galvanizing is strongly recommended.
Galvanizing improves durability while maintaining high tensile strength.

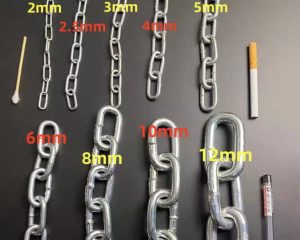

Galvanized Chain Sizes
Galvanized chains are available in multiple diameters to match different load requirements.
Standard galvanized chain sizes range from 2mm to 18mm:
-
2mm–6mm: Light duty (fencing, decoration, small securing tasks)
-
8mm–12mm: Medium duty (marine, agriculture, construction)
-
14mm–18mm: Heavy duty (lifting, mining, anchoring, industrial use)
When selecting chain size, it is critical to check the working load limit (WLL) and breaking strength. Larger diameters provide higher load capacity but also increase weight. For marine galvanised chain applications, thicker diameters combined with hot dip galvanizing provide superior durability and corrosion resistance. Always match the chain size with compatible shackles and fittings for safe operation.
Key Types of Galvanized Chains
Different applications require different types of galvanized chains. Understanding the main categories helps ensure proper performance and safety.
The key types of galvanized chains include galvanized round link chains, galvanized roller chains, galvanized welded link chains, and heavy duty galvanized lifting chains. Each type is designed for specific load capacities and environmental conditions.
Galvanized round link chains are commonly used in marine and mining environments due to their strength and durability. Galvanized welded link chains are popular for general securing and agricultural use. Galvanized roller chains are typically used in outdoor power transmission systems where corrosion protection is necessary. Heavy duty galvanized chains are manufactured with higher-grade steel and thicker zinc coatings to withstand demanding lifting and anchoring applications. Choosing the right type depends on your working load requirements and exposure conditions.
What Is a Galvanised Round Steel Chain?
Round steel chains are especially popular in heavy-duty industrial sectors. When galvanised, they become even more versatile.
A galvanised round steel chain is a welded round link chain coated with zinc for corrosion resistance. It combines high tensile strength with protection against rust, making it suitable for mining, marine, and hoisting applications.
These chains are often manufactured from high-grade alloy steel and then hot dip galvanised to ensure durability. In mining operations, they are used in scraper conveyors and armored face conveyors. In marine environments, they serve as anchor and mooring chains. The round link structure evenly distributes load stress, improving safety and reliability.
Galvanised round steel chains offer strength and corrosion protection in one solution.
Galvanized Round Steel Chain Specification Table
Below is a typical specification reference for hot dip galvanized round steel chains:
| Diameter (mm) | Inside Length (mm) | Inside Width (mm) | Approx. Weight (kg/m) | Working Load Limit (kg) |
|---|---|---|---|---|
| 2mm | 12 | 4 | 0.07 | 40 |
| 4mm | 24 | 8 | 0.35 | 250 |
| 6mm | 36 | 12 | 0.80 | 500 |
| 8mm | 48 | 16 | 1.40 | 800 |
| 10mm | 60 | 20 | 2.20 | 1250 |
| 12mm | 72 | 24 | 3.20 | 1800 |
| 14mm | 84 | 28 | 4.50 | 2500 |
| 16mm | 96 | 32 | 5.80 | 3200 |
| 18mm | 108 | 36 | 7.40 | 4000 |
Note: Specifications may vary depending on grade (G30, G43, G70, etc.) and manufacturing standards.
For heavy duty galvanized chain applications such as lifting or anchoring, always confirm certified load ratings.
What Is the Difference Between Galvanised and Stainless Steel Chains?
Many buyers compare galvanised chain with stainless steel chain when selecting corrosion-resistant solutions.
A galvanised chain uses carbon or alloy steel coated with zinc, while stainless steel chains contain chromium that naturally resists corrosion. Stainless steel offers better long-term rust resistance, but galvanised chains are more cost-effective and stronger in high-load applications.
Heavy duty galvanised chains are often preferred for lifting, mooring, and industrial uses because they provide higher tensile strength at a lower cost. Stainless steel chains are commonly chosen for food-grade or highly corrosive chemical environments.
Your decision depends on budget, load requirements, and environmental exposure.
How to Choose the Right Galvanized Chain?
Selecting the correct galvanized chain depends on load capacity, environmental exposure, and safety requirements.
For marine environments, choose hot dip galvanized chain with thicker zinc coating. For lifting applications, verify Working Load Limit (WLL) and compliance standards. For mining or heavy industrial use, select high-grade galvanized round steel chain with enhanced tensile strength.
Also ensure compatibility with shackles, hooks, and connectors. Proper installation and regular inspection extend service life and reduce failure risks.
Correct selection improves safety and long-term cost efficiency.
Work With a Reliable Galvanised Chain Supplier
At Elephant Metals, we specialize in manufacturing high-strength round steel chains, including heavy duty hot dip galvanized chains from 2mm to 18mm for marine, mining, and industrial applications.
Send us your required diameter, grade, and load specifications today — our team is ready to provide a durable and competitive solution for your project.
FAQ
1. What is the difference between hot dip galvanized and electro-galvanized chain?
Hot dip galvanized chains have a thicker zinc coating and better corrosion resistance. Electro-galvanized chains are smoother but offer lighter protection and are suitable for indoor use.
2. Is galvanized chain suitable for marine use?
Yes. Marine galvanized chain, especially hot dip galvanized round steel chain, is widely used for anchor and mooring systems due to strong corrosion resistance.
3. What size galvanized chain do I need?
It depends on your working load requirement. Light-duty tasks may require 4mm–6mm, while lifting and anchoring often require 10mm–18mm heavy duty galvanized chain.
4. How long does a galvanized chain last?
Service life depends on environment and load conditions. In moderate outdoor environments, hot dip galvanized chains can last several years with proper maintenance.
5. Can galvanized chain be used for lifting?
Yes, but only if it meets certified lifting standards and has a verified Working Load Limit (WLL). Always confirm grade and compliance before lifting operations.
