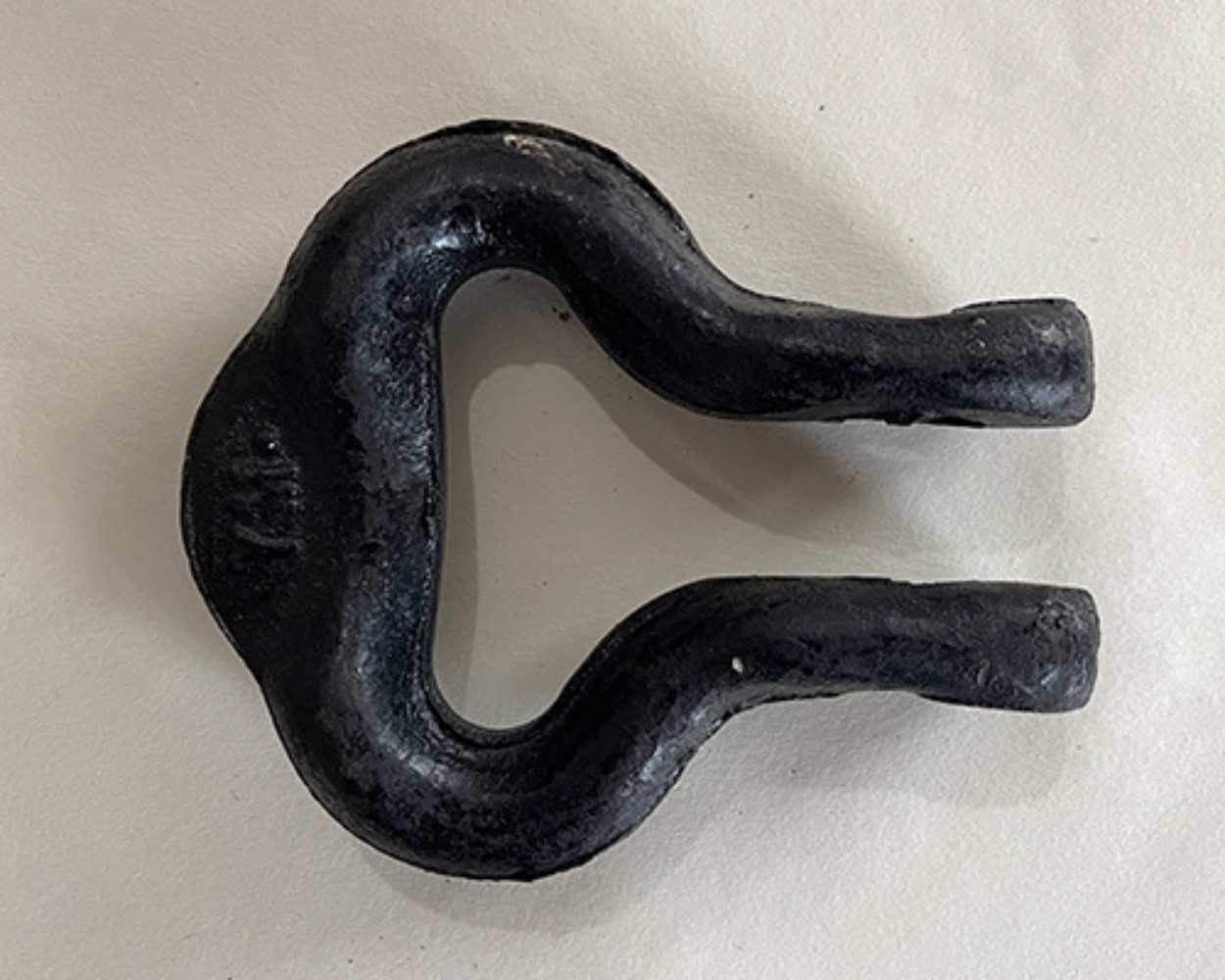

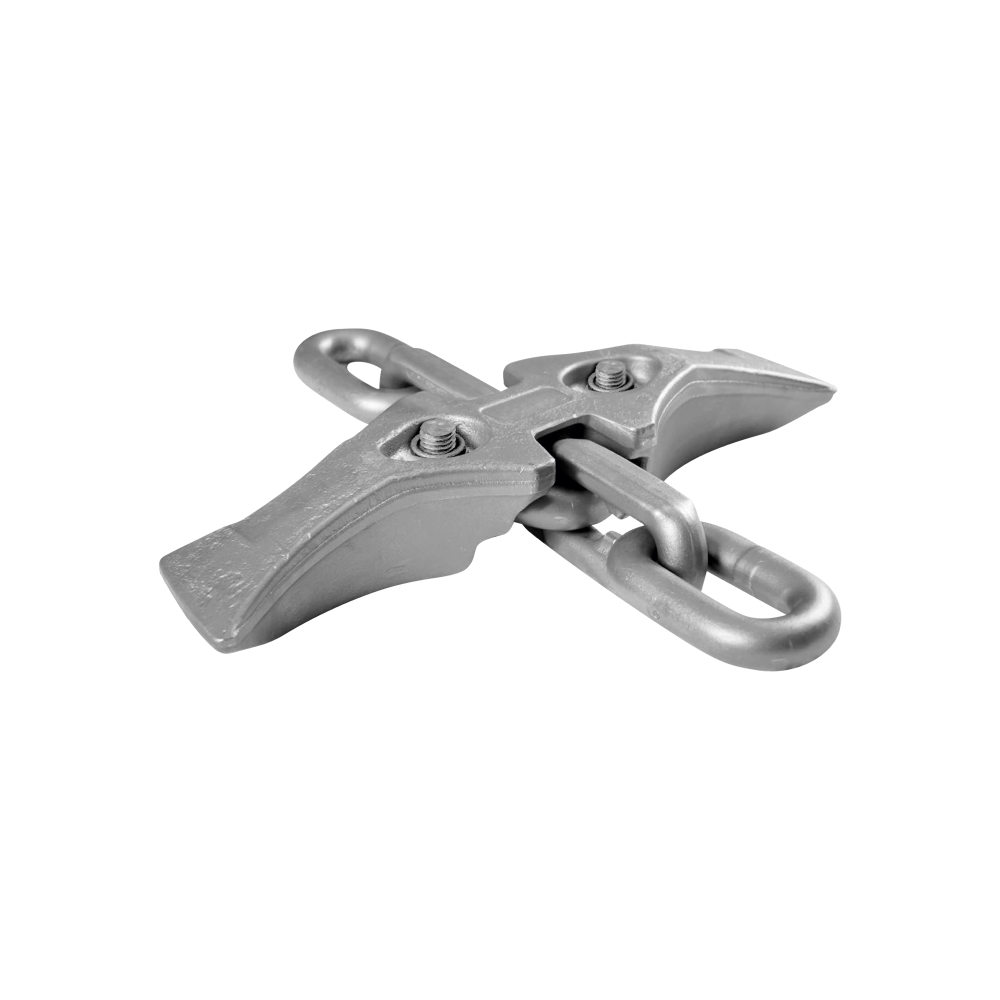

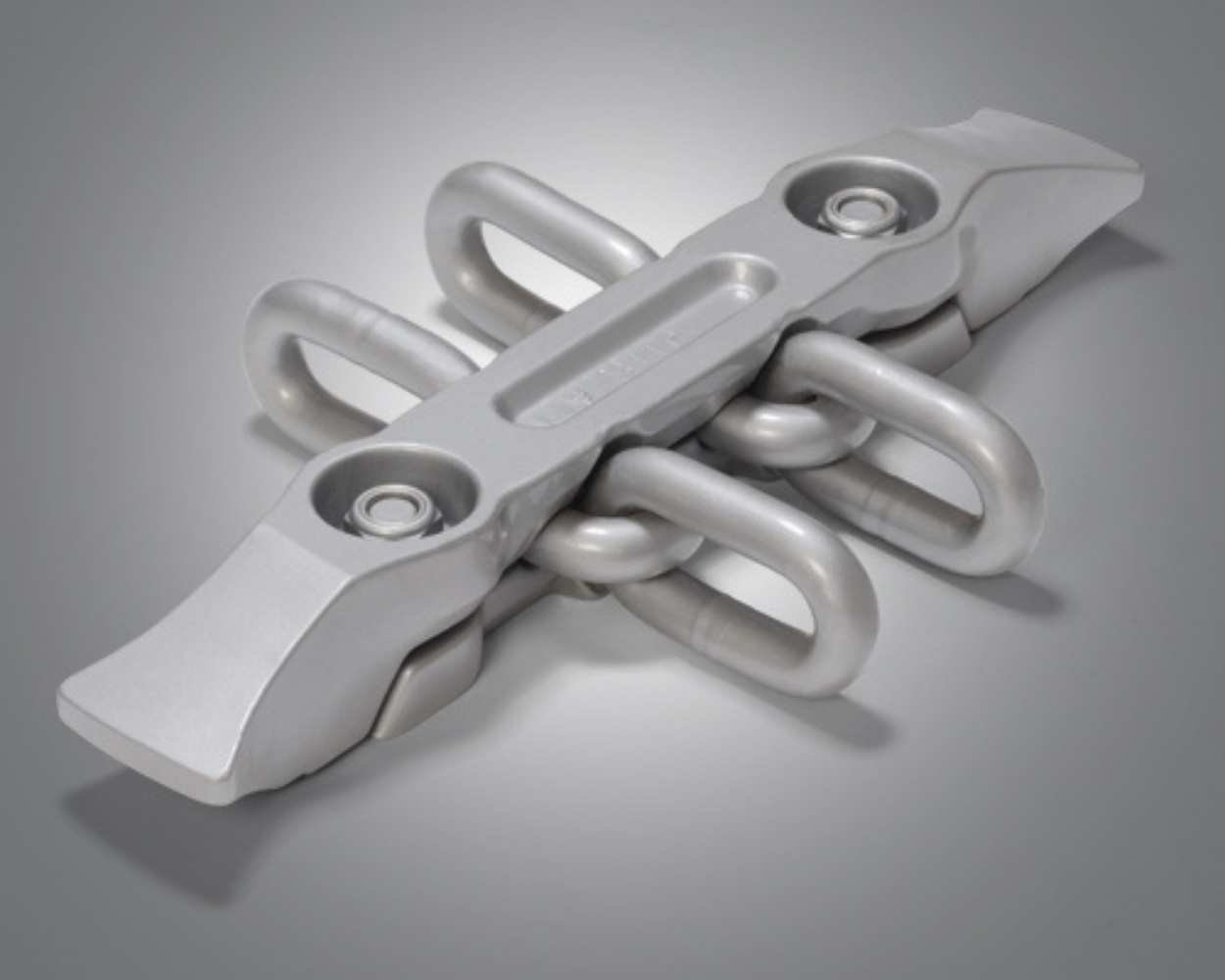

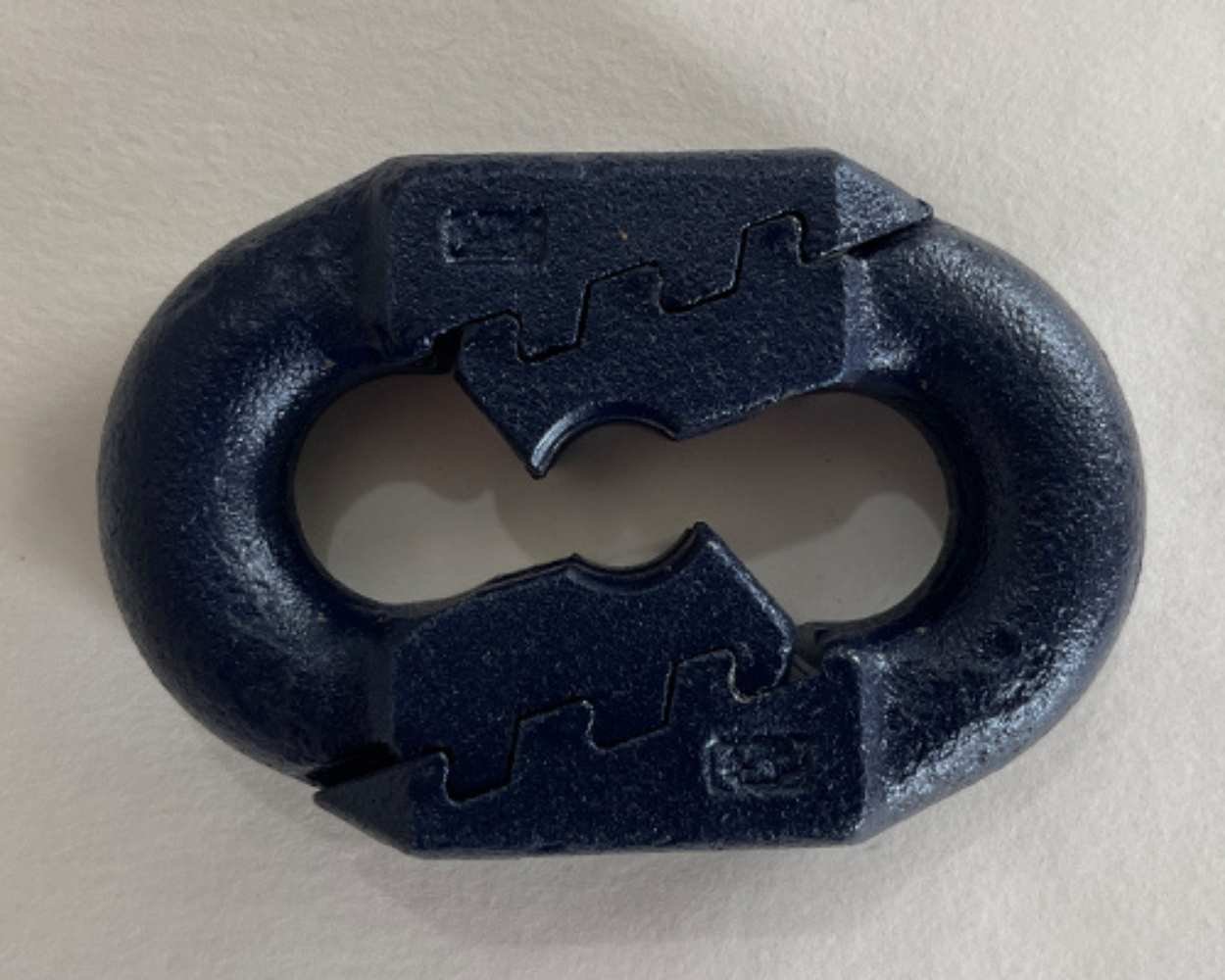

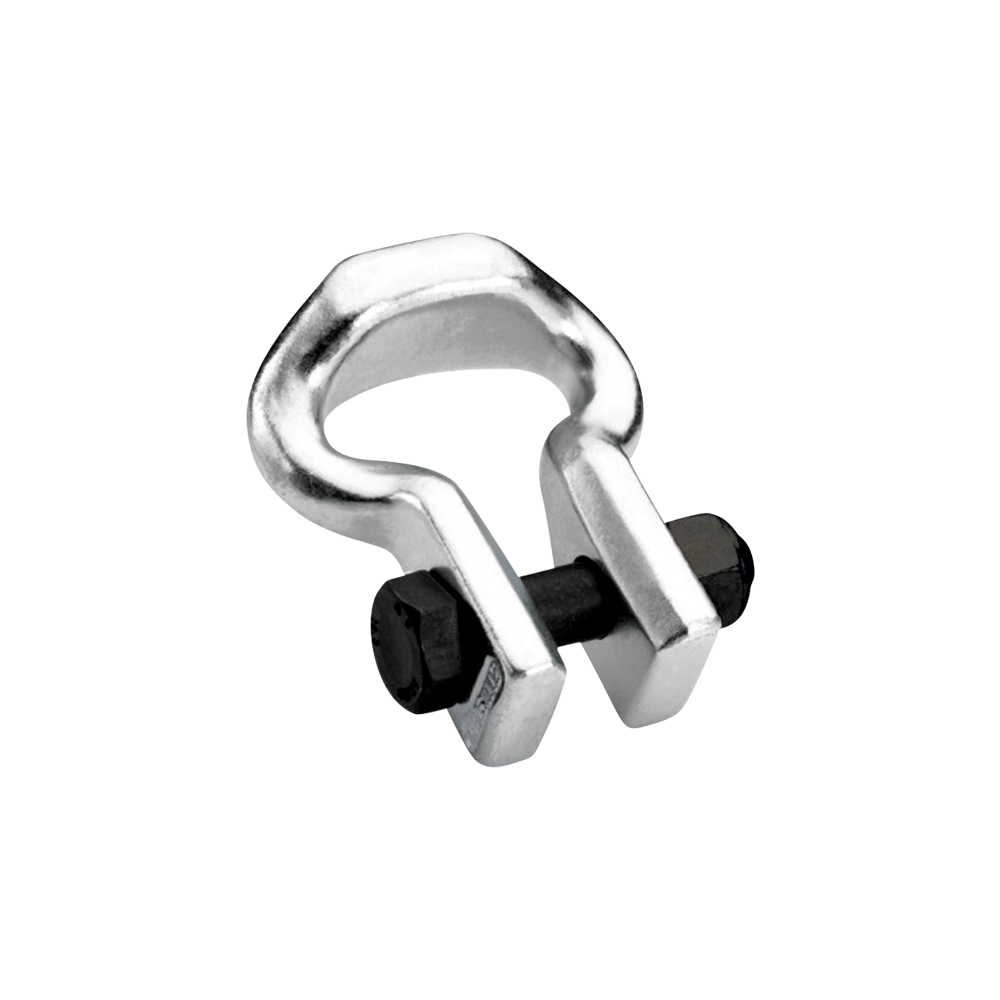

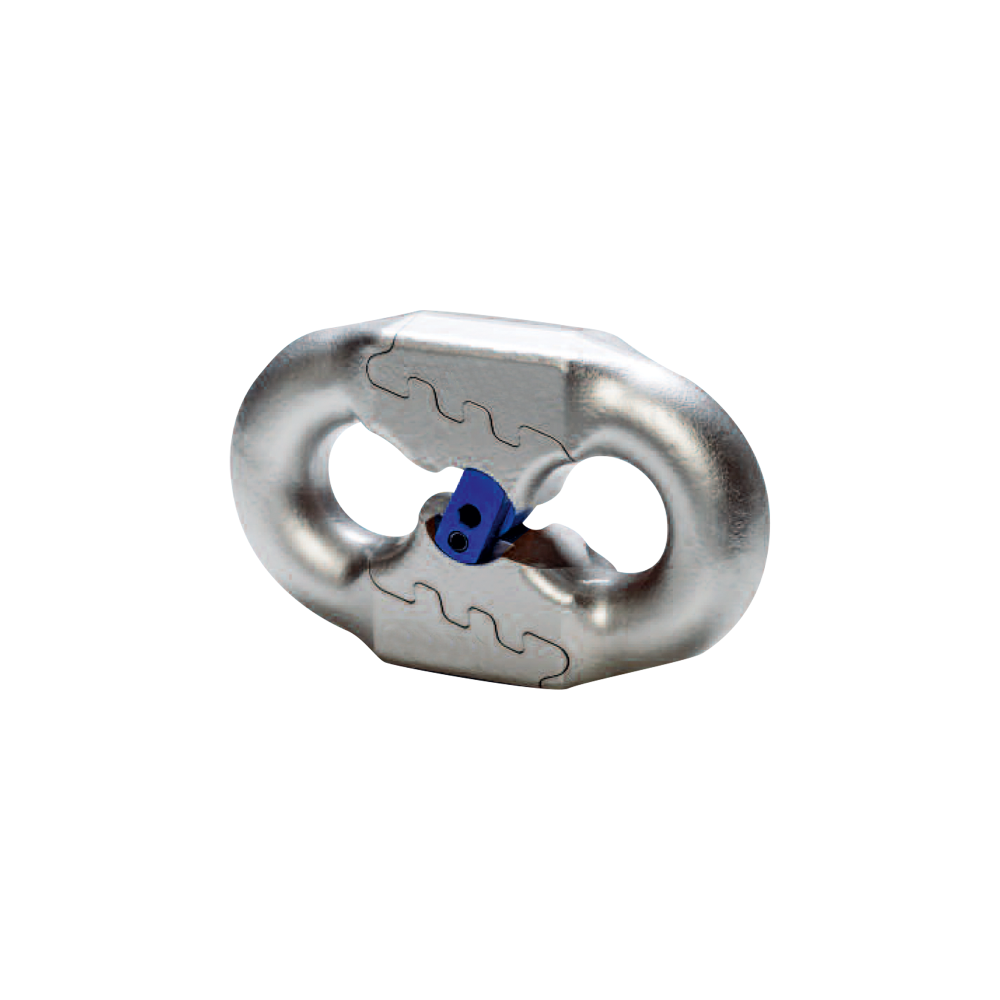

High-strength connecting links engineered for scraper conveyor and bucket elevator chains, available in bolt-type, locking pin, single strand, and double strand designs for reliable performance.
| Parameter | Specification |
|---|---|
| Size Range | 14×50mm – 30×108mm |
| Bolt Grade | Grade 10.9 |
| Bolt Thread | M16 – M30 |
| Tightening Torque | 180 – 1000 Nm |
| Test Load | 180 – 758 kN |
| Min. Breaking Load | 225 – 905 kN |
| Weight | 0.52 – 6.48 kg |
| Parameter | Specification |
|---|---|
| Size Range | 18×64mm – 34×126mm |
| Test Force | 360 – 1240 kN |
| Tensile Force | 360 – 1350 kN |
| Min. Breaking Force | 450 – 1650 kN |
| Pulsating Load Range | 25 – 454 kN |
| Fatigue Test Cycles | 40,000 cycles |
| Weight | 1.7 – 4.5 kg |
| Parameter | Value |
|---|---|
| Size Range | 14×50mm – 42×146mm |

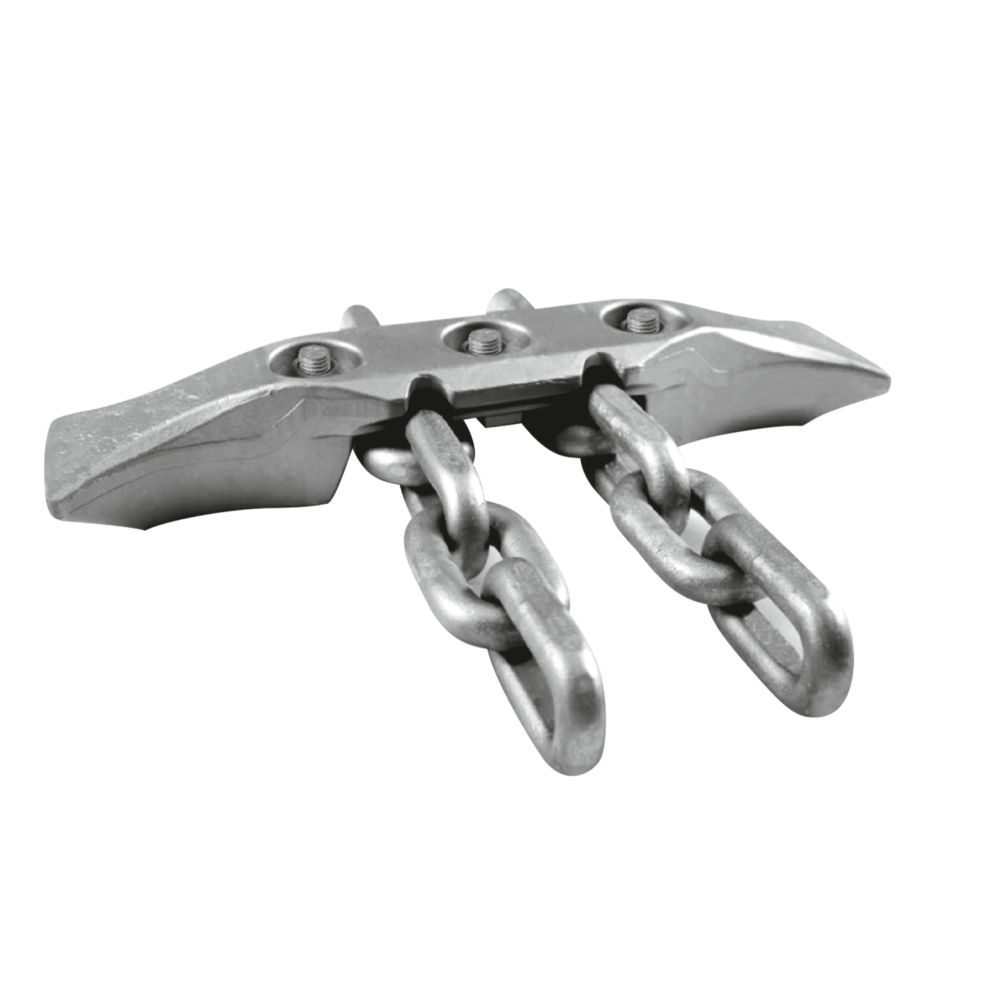

| Structural Variant | FI / FL / S-FI forged types (single strand); Open-type shackle connector (double strand) |
| Chain Center Distance / Inside Length | 120mm – 345mm (single strand); 337mm – 702mm (double strand) |
| Min. Specified Strength | ≥35kN – ≥255kN |
| Weight | 16.5kg – 99.5kg |
| Connector Type | Open-type paired connecting link |
| Application | Single-strand & twin outboard chain conveyors, elevating conveyor systems |
